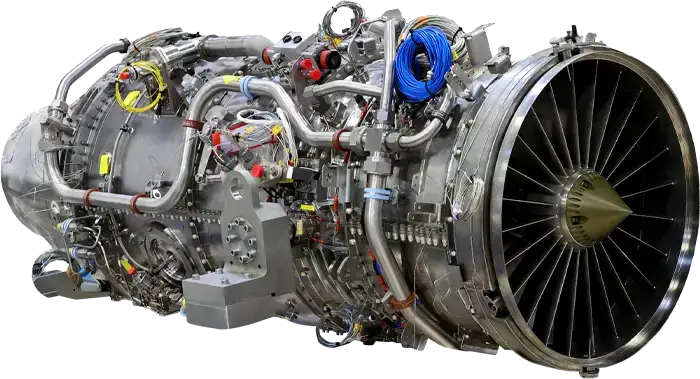

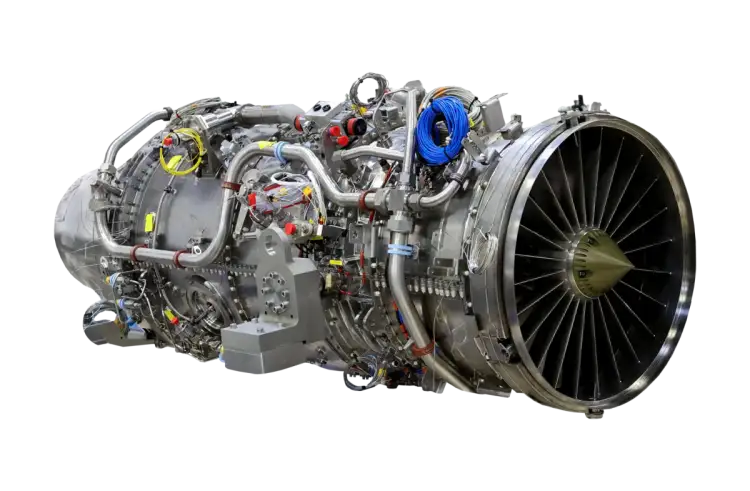

TEI-TF6000

TEI-TF6000
Turbofan Engine

Having implemented the project considering Türkiye's turbofan engine needs, TEI is developing the first indigenous turbofan engine, TEI-TF6000, with 6,000 lbf thrust. The engine, designed to support afterburner version, will provide more thrust together with the afterburner.

The TEI-TF6000 Turbofan Engine and its derivatives to be developed from its core engine are available to be employed on various national platforms such as manned-unmanned warplanes, business jets, regional passenger planes, civil-military helicopters with 10-ton take-off weight, gunboats, and power plants.

With the TEI-TF6000 project, TEI aims at carrying out the design, development and manufacturing stages of the Turbofan Engine, accessory subsystems, fan module, variable stator vane compressor, flow mixer exhaust, afterburner for the first time in Türkiye, and achieve ground breaking technology, local supplier industry companies, and experienced human resource in our country.

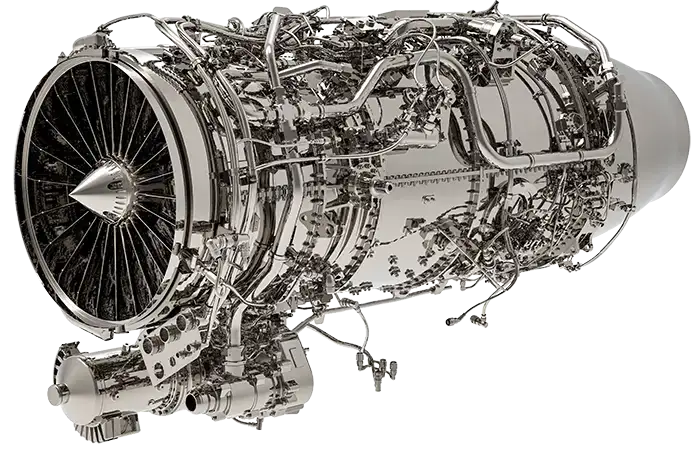

1702993564 Web6000

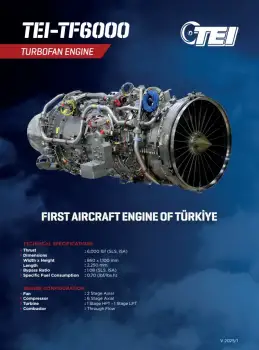

Technical Specifications

  • Dry thrust: 6,000 lbf (SLS, ISA)
  • Dimensions: 860 x 1,100 x 2,250mm
  • Bypass Ratio: 1.08 (SLS, ISA)
  • Specific Fuel Consumption: 0.70 (lbf/lbs.h)
  • Engine Configuration
    • Fan: 2 Stage Axial
    • Compressor: 6 Stage Axial
    • Turbine: 1 Stage HPT - 1 Stage LPT
    • Combustion Chamber: Through Flow

TEI-TF6000
